How to test filter capacitor

2025 07/08

Filter capacitors are critical components in DC, AC, and high-voltage power supplies, ensuring stable voltage regulation and noise suppression. Proper testing guarantees reliability and prevents system failures. Below are key methodologies and considerations:

1. DC Power Supplies
In DC circuits, capacitors stabilize voltage by filtering ripples. Use a multimeter in capacitance mode to verify rated values. For electrolytic capacitors, measure equivalent series resistance (ESR) with an LCR meter—elevated ESR indicates degradation. Apply a DC bias (e.g., 50% of rated voltage) to simulate real-world conditions.

2. High Voltage Power Systems

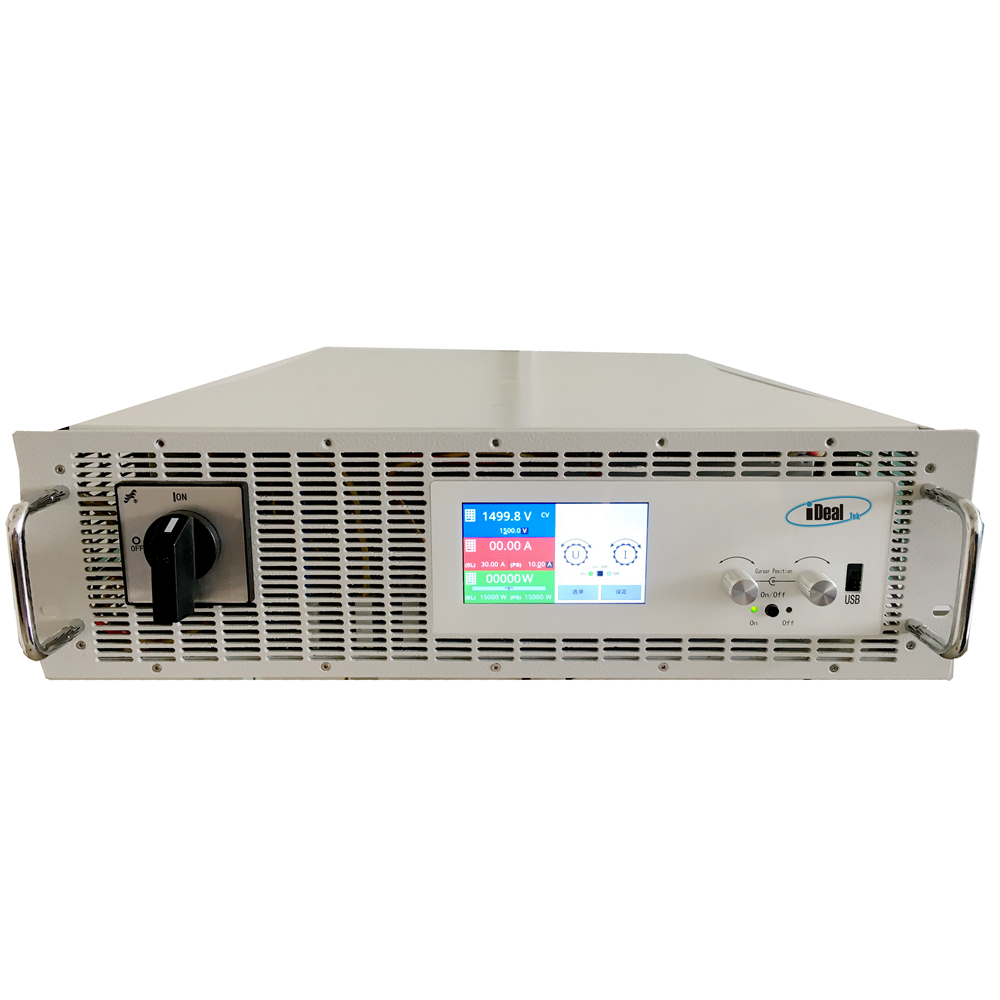

High-voltage capacitors demand rigorous safety protocols. Use a high-voltage DC power supply (e.g., 1–10 kV) and insulated probes to test leakage current. Perform an insulation resistance test (≥100 MΩ) using a megohmmeter. Monitor temperature rise under load, as excessive heat signals dielectric breakdown.

3. AC Power Supplies
In AC applications, capacitors handle reactive power and filtering. Use an LCR meter at 50/60 Hz to measure capacitance and dissipation factor (DF). For motor-run capacitors, verify tolerance (±5%) and check for short circuits. AC hipot tests (1.5× rated voltage) ensure dielectric strength.

Tools & Standards
  • Instruments: LCR meters (Agilent/Keysight E4980), hipot testers, thermal cameras.
  • Standards: IEC 60384 (fixed capacitors), MIL-STD-202 (environmental testing).
